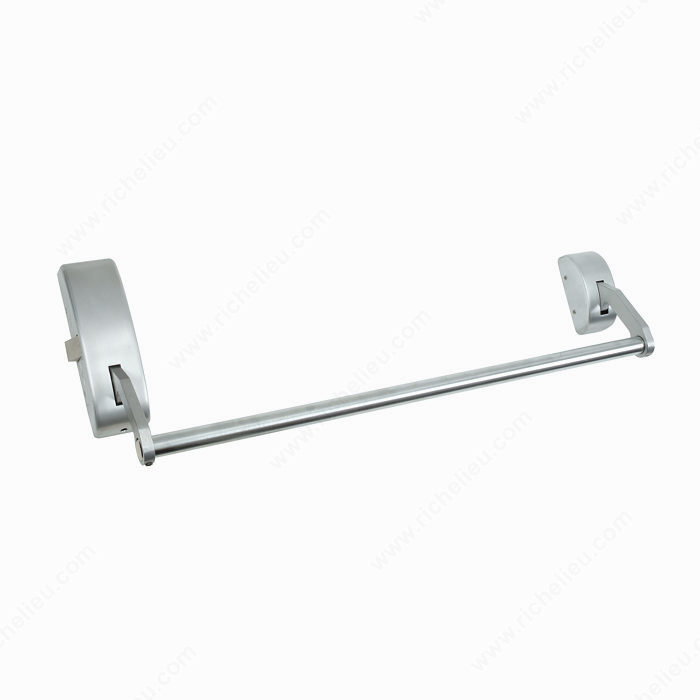

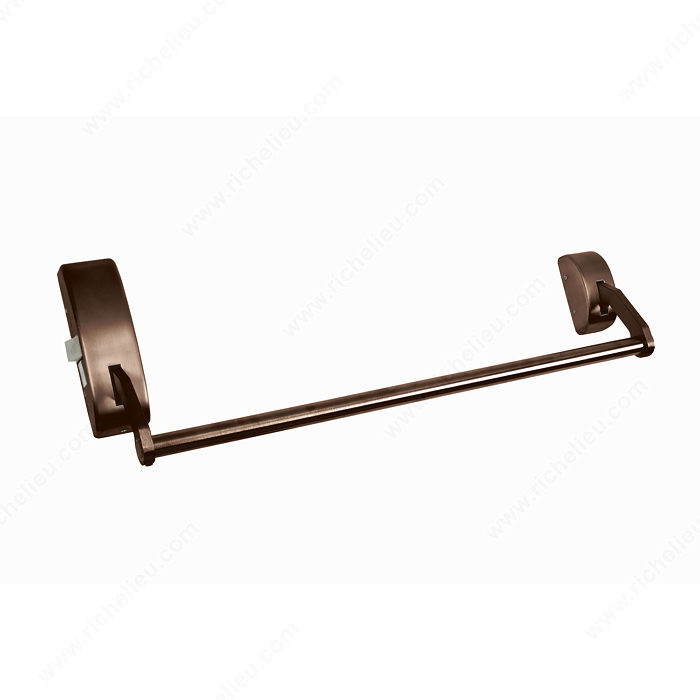

Cross Type Panic Bars – 436 SeriesCross Type Panic Bars – 436 Series
TECHNICAL SPECIFICATIONS
Product number
436ERDB
Door Width Requirements
30 to 36 in
Length
36 in
Backset
2 3/8 in
Minimum Frame Width
4 1/4 in
Strike
5/8 in
Projection Pushpad Depressed
1 7/8 in
Projection Pushpad Neutral
2 1/2 in
Door Thickness
1 3/4 in
Handing Position / Opening Side
Reversible for Left or Right
Level
2
Fire-Rating
Not Certified
Retaining
Standard 1/4 Turn Allen Type
Mounting Height
40 5/16 in
Dogging
1/4 in
Latchbolt Throw
3/4 in
Deadbolt Throw
1/2 in
Strike
1/2 to 5/8 in
Finish Warranty
5 Years
Mechanical Warranty
10 Years
Standards and Certifications
UL, Not Certified, ADA, ANSI A156.3
